CASE STUDY— SUBCONTRACT  FABRICATION

HIGH-PRECISION FRAMES, BRACKETS & ASSEMBLIES

TIGHT DEADLINES. NO COMPROMISES.

How Ultimate Fabrication Supports

Endoline Automation

COMPONENTS PER BUILD

200+

CLIENT

Endoline Automation

SECTOR

Packaging Machinery

SECTOR

Packaging Machinery


01 — THE CHALLENGE

COMPLEX BUILDS.
UNRELENTING TIMELINES.

Endoline Automation needed a fabrication supplierthat could handle short lead times, tight tolerances,and complex machine builds — all without slowingdown their production.Each project involved 30–200 unique parts, includinglarge frames, sub-assemblies and custom brackets.The pressure was on to deliver quality, first time, ontime.

30–200

COMPONENTS PER MACHINE BUILD

100%

ON-TIME DELIVERY REQUIREMENT

02 — THE SOLUTION

FULL-SCOPE FABRICATION.
ONE TRUSTED SOURCE.

Ultimate Fabrication stepped in as a dedicated fabrication partner — handling the full range of metalwork required across each build cycle.

Fully welded structural frames

MIG and TIG welded to drawing, checked for squareness and dimensional accuracy

Weldments and sub-assemblies

multiple parts joined, cleaned, and finished to spec

Precision-pressed and cut parts

folded brackets, punched plates, laser-profiled components

Sheet metal enclosures and guards

formed and finished panels for machine housing

Batch and one-off runs

scalable output matched to Endoline's production schedule

DELIVERED READY-TO-ASSEMBLE

Every component lands on the Endoline floor checked, deburred, and ready to fit — no secondary operations, no surprises.

03 — OUR  APPROACH

BUILT AROUND

YOUR PRODUCTION.

CLEAR COMMUNICATION

We work closely with Endoline’s engineers and buyers to ensure every detail is understood from the start. This helps avoid delays and keeps projects running smoothly.

FAST TURNAROUND

Our flexible approach allows us to react quickly to urgent changes, late-stage tweaks, or tight delivery schedules — without compromising on quality.

READY-TO-ASSEMBLE

We deliver all components fully welded and fabrication-complete, so they’re ready to slot straight into Endoline’s machines with minimal effort.

04 — PROJECT  SNAPSHOTS

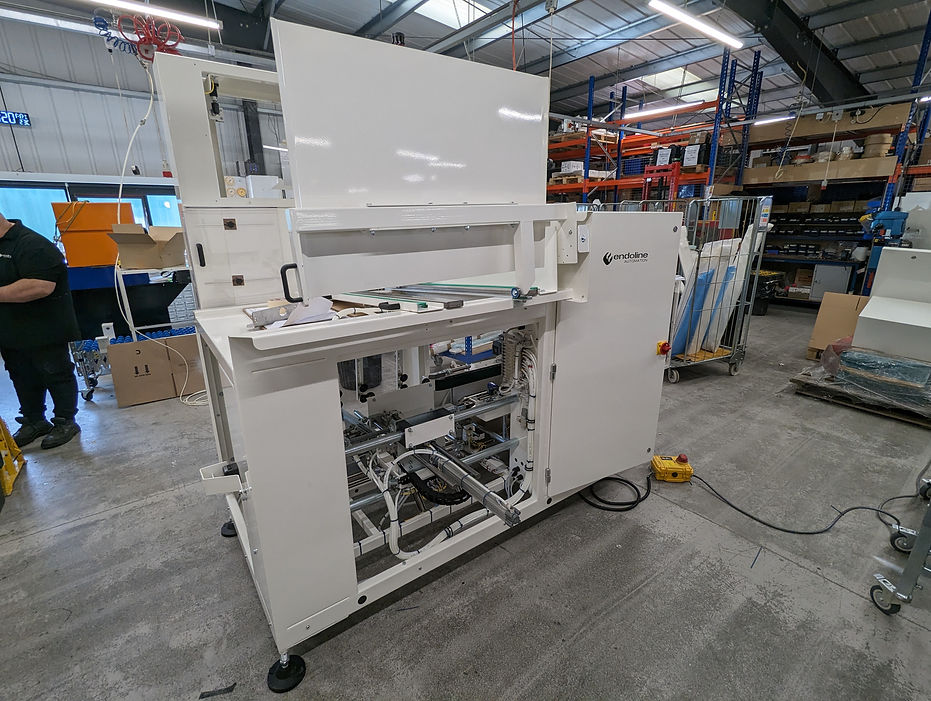

ENDOLINE 744
CASE SEALER.

The Endoline 744 is a high-throughput automatic case sealer designed for demanding end-of-line packaging environments. The machine requires a wide range of precision fabricated components that must integrate seamlessly with pneumatic, mechanical, and electronic systems.Ultimate Fabrication supplied the complete structural and sheet metal scope — delivered in batch, ready to drop straight onto the assembly line.

COMPONENTS DELIVERED

FABRICATED PARTS SUPPLIED

  • Main welded machine frame (mild steel, powder-coat ready​

  • Drive roller support brackets — pressed and drilled to tolerance

  • Tape head mounting plates — laser-cut, countersunk

  • Control panel enclosure — folded sheet, threaded inserts fitted

  • Conveyor bed support legs — cut, mitred, and welded square

  • Pneumatic manifold brackets — precision-cut aluminium

  • Miscellaneous gussets, tabs, and cover plates (×24 variants)

05 — RESULTS

WHAT ENDOLINE
CAN COUNT ON.

ACCURATE BUILDS

Components made to drawing — every time. Dimensional checks carried out before despatch. Fits first time, on the line.

REPEATABLE QUALITY

Same specification, same result — whether it's a one-off prototype or a recurring production batch. No quality drift between orders.

QUICK RESPONSE

Short notice requests handled efficiently. Flexible capacity means we absorb urgent demand without disrupting scheduled work.

Ultimate Fabrication continue to support our machine builds with high-quality fabricated components, delivered on time and to spec. Their responsiveness has made them a valuable supplier to our business.

ENDOLINE AUTOMATION

PROCUREMENT & SUPPLY CHAIN TEAM
